Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making MachineA. High Precision
B. High Efficiency
C. Customized Service
D. Low Noise
Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine is the most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used in the construction of various industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel . It has beautiful design, and widely used in all over the world.
We adopt export standard technical solution to make machine strong and stable enough.
Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.
1. Production Process Diagram:
2. Main Technical Specifications:
|Name||Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine|
|Raw Material||Material||PPGI PPGL GI GL|
|Power Required||Power||380V 3Phase 50Hz, customized|
|Main Motor||5.5KW, Lichao, Shanghai/Siemens Brand|
|Cutting Motor||4.0KW, Lichao, Shanghai/Siemens Brand|
|Roll Forming Machine||Support Frame||350H steel, 10mm|
|Forming Station||16 rows, exactly according to profile drawing|
|Shaft||45# high grade steel, 70mm, solid, with keyway|
|Roller||45# high grade steel with heat treatment, hard chrome plated|
|Electric Components||Delta / Siemens / Mitsubishi|
|Cutting Blade||Cr12Mov, quenched 58°-62°|
We also provide Safety Shield, Hydraulic decoiler, Automatic stacker for your better operation. It can save labor, save cost and can guarantee your production line more safer. Above all, it can improve your work efficiency !

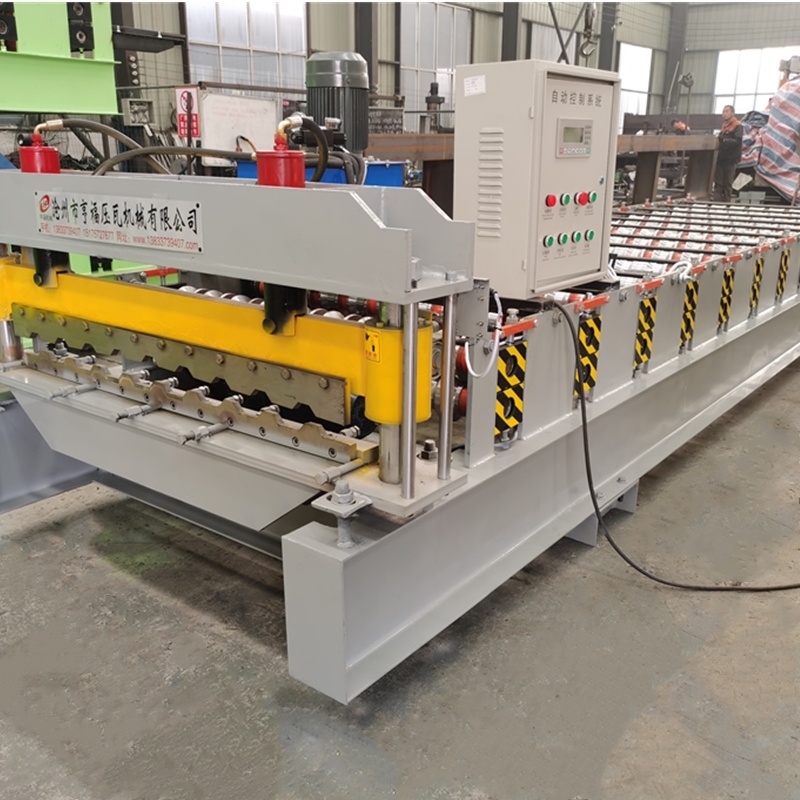

3. Pictures of Roll Forming Machine:
4. Machine Production Process:
5. Company Certification:
6. Good Feedback from Customers:
7. Packaging & Loading
Main body is covered with plastic film and fixed well by wire rope in container;
Rollers are painted by rust oil;
Spare parts are packed by carton box;
We have professional technicians for loading, guaranteed the goods load into container without any damage;
Transportation : Machines need one 20/40 feet container to hold.
8. Related Roll Forming Machines
9. Why Choose Us ?
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
