Trapezoidal Metal Roofing Sheet Tile Roll Forming Machine
|Type||PPGI, PPGL, GI, GL, PPAL||As requirement|
|Thickness of Material||mm||0.3-0.8mm||As requirement|
|2||Material Width||mm||914-1650||As requirement|
|3||Production Speed||m/min||Common speed: 0-12m/min||Adjustment|
|High speed||As requirement|
|4||Effective Width of Product||mm||760-1260mm||According to drawings|
|5||Roller Material||45#, Cr12, GCr15, GCr12MoV||As design|
|6||Drive Type||By Chain or Gear or Gearbox|
|8||Brand of Electric Control System||Delta or Siemens or Schneider||Selectable|
|9||Dimension ( L* W * H )||m||8.5*1.45*1.5||Based on design|
Decoiler ( Selectable configuration ):
Left ( Standard configuration ): Manual simple decoiler;
Right (Optional configuration ): Hydraulic decoiler;
Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm
Main Roll Forming Machine:
Driving Type: Chain(common) or Gear or Gearbox;
Forming Model: Integral Forming or Split Forming;
Forming Machine structure: Medium-plate Type(common) or Arch Type or Guide-pillar type;
Roller: 45# or Cr12 or GCr15 or GCr12MoV
Shaft: 45# or 40Cr; 70mm/80mm/90mm(common) or as design;
Motor Power: 4.0kW or 5.5kW or according to the design requirements;
Main Frame: 350# or 400# H-beam steel welded.
Working Model: Hydraulic Cutter (common) or Electric Cutter;
Cutter Blade Material: Cr12.

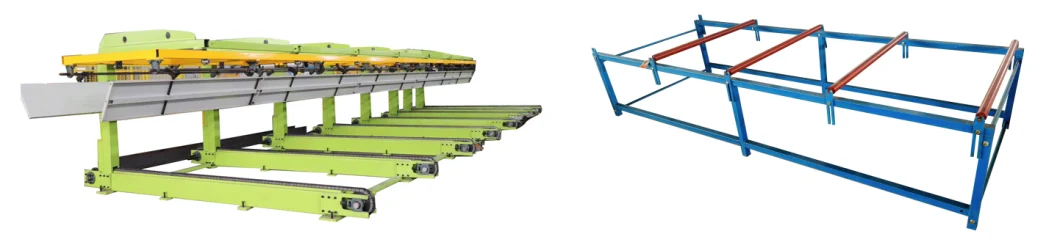

Collecting Product Table
Left: Automatic Stacker (optional configuration)--Length: According to customized;
Right: Manual Simple collecting product table (standard configuration)--Length: 3m(common) or as customized.
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
General Industry tech Hebei Developing Co., Ltd (GEIT) is aimed at providing our customers with the best quality metal rolling automation solutions and after-sale s service. At present, our company has more than 10 years of designing and making the cold roll forming machine, and our products have been sold to more than 60 countries and areas, achieving good fame. GEIT are capacable of and confident with our product that will make its name in China and will be famous in the world.
Backed with the powerful technology and the perfect market service system, and holding the idea of globalization, we have expanded our international market step by step. Opportunities accompanying with challenges, and we are always full of confidence.
1. Equipment research and developing
Our company commits to provide customized coil processing solution according to each customer's specific metalworking process. With experienced technical technical team and continuous researching investment, we are capable to offer coil handing solutions that meet higher international standards.
2. Manufacturing quality control
Precision machine tool, skilled workers, from spare parts preparation to equipment assembly, our machine can offer real--time manufacturing update for our valued customers.From raw material control, spare parts inspection and machine assembly, our factory implements a strict quality control process. We commit to offer coil performance. All work are just for making sure all the products of machines are qualified.
1. How to get the quotation?
1.1.Give me the profile drawing and thickness,this is the important.
1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2.Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.
3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
