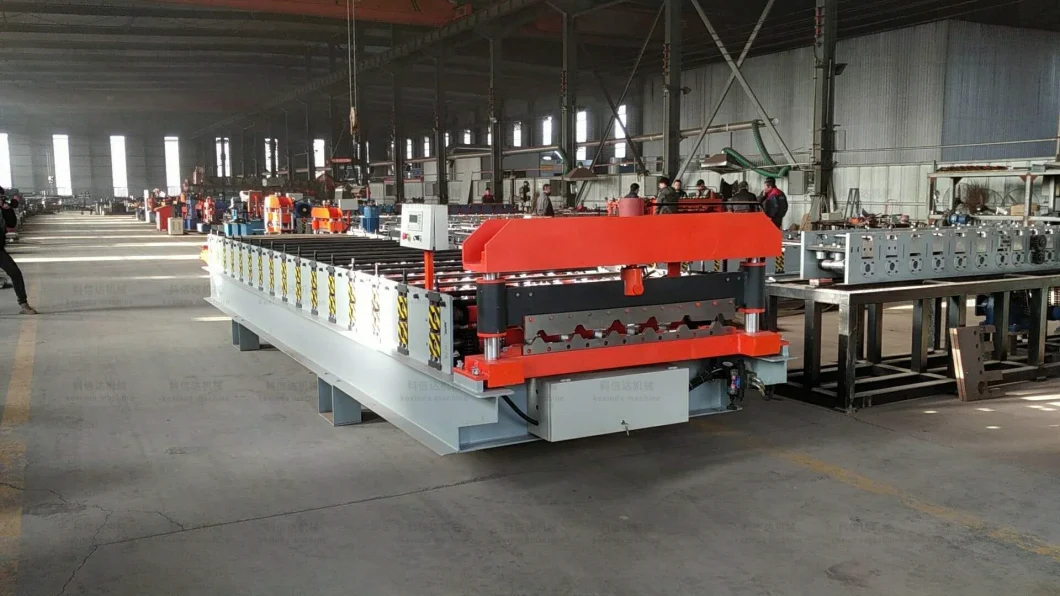

Glazed Tile Roll Forming Machine corrugated sheet making machine
Equipment detailed parameters
1Suitable materialColored steel plate, galvanized board, aluminum plate
2Width of the raw material1200mm
3Rows of rollers13 rows
4Appearance size7.3*1.45*1.55m
5Total power4kw
6Thickness of raw material0.3-0.8mm
7Productivity10-15m/min
8Diameter of shaft¢70mm
9Voltage380V  50Hz 3phases
Glazed Tile Roll Forming Machine Corrugated Sheet Making Machine

Glazed Tile Roll Forming Machine Corrugated Sheet Making Machine
Glazed Tile Roll Forming Machine Corrugated Sheet Making Machine
Glazed Tile Roll Forming Machine Corrugated Sheet Making Machine
Glazed Tile Roll Forming Machine Corrugated Sheet Making Machine







Components and technical specification
No   Technical specification
1Manual uncoilerUsage:It is used to support the steel coil and uncoil it in a turntable way.The steel coil is uncoiled by hand.Loading capacity:5t
Inner diameter:500-508mm
2Feeding tablePut the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
3Main roll forming machineMaterial of rollers:45# steel,roller surfaces polishing, hard plating , the polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
4Shearing mechanismIt adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades:Cr12,quenching treatment
5Press formPress form
Material of blades:Cr12,quenching treatment
6Hydraulic systemPower:4kw,hydraulic oil:40#
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
7Computer control cabinetThe target piece`s length is adjustable and digit of it can be adjusted.Computed mode has two modes:Automatic and manual one.The system is easy to operate and use PLC
8Spare partsOne box





3.Packing method
Main machine is nude;The computer control box is packed by carton box
4.Transportation
All machines need one 40 feet container to hold
5.Payment term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
6.Delivery time
Within 30 days after receiving deposit
7.Warranty   one year, and we will provide technical support for whole life of the equipment.
