Double layer steel tile roof panel forming machine

Double Layer Steel Tile Roofing Sheet Roll Forming MachineA. High Precision B. High EfficiencyC. Customized ServiceD. Low NoiseDouble Layer Steel Tile Roofing Sheet Roll Forming Machine is the most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used in the constructi

Featured Products

Double Layer Steel Tile Roofing Sheet Roll Forming Machine
A. High Precision
B. High Efficiency
C. Customized Service
D. Low Noise

Double Layer Steel Tile Roofing Sheet Roll Forming Machine is the most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used in the construction of various industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel . It has beautiful design, and widely used in all over the world.

We adopt export standard technical solution to make machine strong and stable enough.
Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.


1. Production Process Diagram:

Double Layer Steel Tile Roofing Sheet Roll Forming Machine

Uncoiling --- Feeding --- Roll Forming --- PLC Controlling --- Hydraulic Pressing --- Hydraulic Cutting --- Receiving

2. Main Technical Specifications:

NameDouble Layer Steel Tile Roofing Sheet Roll Forming Machine
Raw MaterialMaterialAluminium PPGI PPGL GI GL
Width914/925/1000/1200/1220/1250/1260mm
Thickness0.3-0.8mm, customized
Power RequiredPower380V 3Phase 50Hz, customized
Main Motor5.5KW, Lichao, Shanghai/Siemens Brand
Cutting Motor3.0KW, Lichao, Shanghai/Siemens Brand
Roll Forming MachineSupport Frame350H steel, 10mm
Forming Station9/11 rows, exactly according to profile drawing
Structure16mm
Shaft45# high grade steel, 80mm, solid, with keyway
Roller45# high grade steel with heat treatment, hard chrome plated
Chain1.0inch
BearingStandard
Speed12-18m/min
Electric ComponentsDelta / Siemens / Mitsubishi
Cutting BladeCr12Mov, quenched 58°-62°
OperationTouch Screen
Dimension5.8*1.5*1.4M
Weight6.5T

We also provide Safety Shield, Hydraulic decoiler, Automatic stacker for your better operation. It can save labor, save cost and can guarantee your production line more safer. Above all, it can improve your work efficiency !

3. Pictures of Roll Forming Machine:
Double Layer Steel Tile Roofing Sheet Roll Forming Machine
Double Layer Steel Tile Roofing Sheet Roll Forming Machine
Double Layer Steel Tile Roofing Sheet Roll Forming Machine
Double Layer Steel Tile Roofing Sheet Roll Forming Machine
Double Layer Steel Tile Roofing Sheet Roll Forming Machine

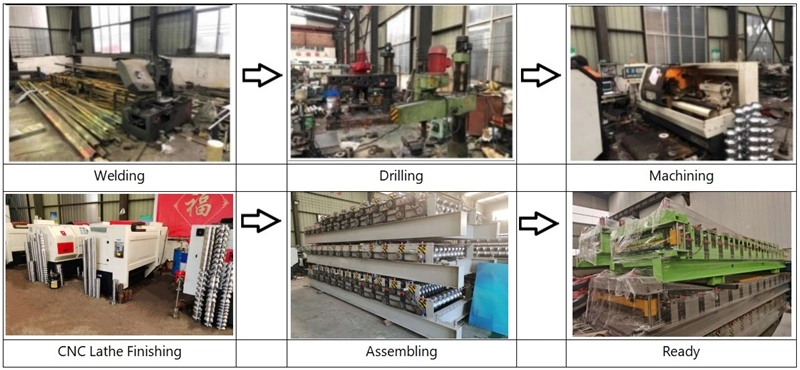

4. Machine Production Process:

Double Layer Steel Tile Roofing Sheet Roll Forming Machine


5. Company Certification:
Double Layer Steel Tile Roofing Sheet Roll Forming Machine

6. Good Feedback from Customers:

Double Layer Steel Tile Roofing Sheet Roll Forming Machine


7. Packaging & Loading:
Double Layer Steel Tile Roofing Sheet Roll Forming Machine
Main body is covered with plastic film and fixed well by wire rope in container;

Rollers are painted by rust oil;
Spare parts are packed by carton box;

We have professional technicians for loading, guaranteed the goods load into container without any damage;
Transportation : Machines need one 20/40 feet container to hold.


Double Layer Steel Tile Roofing Sheet Roll Forming Machine

8. Related Roll Forming Machines:

Double Layer Steel Tile Roofing Sheet Roll Forming Machine

9. Why Choose Us ?


Double Layer Steel Tile Roofing Sheet Roll Forming Machine

10. FAQ:

Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
  2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
   2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
